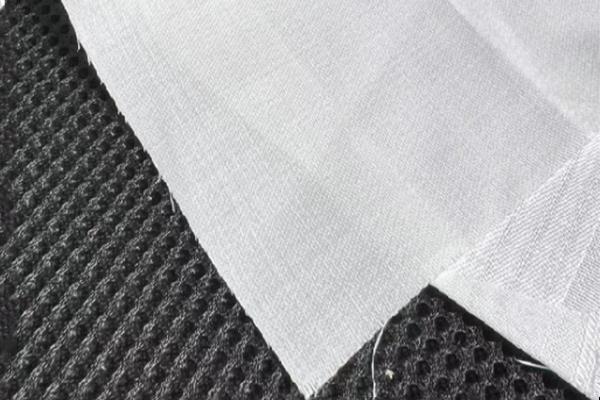

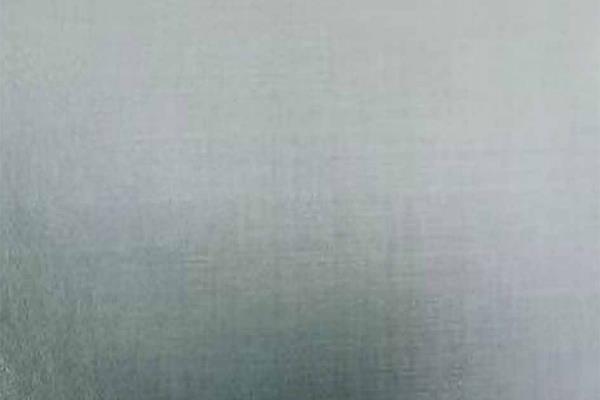

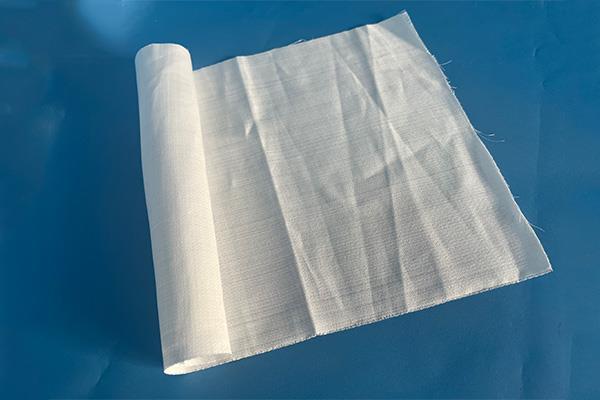

PTFE Woven Cloth
Key features：
• Filter element water filtration,dust removal,centrifuge, etc
• Weight:222g,335g,350g,450g,500g,800g(Specific can be customized according to customer needs)
• Long service life,easy to clean ash,can be used repeatedly
• Operating temperature:-196℃~220℃
• Filter element water filtration,dust removal,centrifuge, etc
• Weight:222g,335g,350g,450g,500g,800g(Specific can be customized according to customer needs)
• Long service life,easy to clean ash,can be used repeatedly
• Operating temperature:-196℃~220℃
ContactHotline：15159252803
Details
| Product Code | BR-5032A | BR-5038A |
| Application | Filter element, centrifuge, etc |
Filter element, centrifuge, etc |
| Construction | 1/1Plain | 4/1Satin |
| Warp | 0.10 mm PTFE | 0.10 mm PTFE |
| Weft | 0.10 mm PTFE | 0.10 mm PTFE |
| Weight | 222 gsm (Nominal) | 335 gsm (Nominal) |
| Thickness | 0.22 mm | 0.28 mm |
| Permeability | 375-415CFM @½" w.g. Or 1900-2100 l/m².s @127Pa | 78-98CFM @½” w.g. Or 400-500 l/m².s@ 127Pa |
| Tensile strengths | 260 N/cm | 480 N/cm |
-
- PTFE Staple Fiber
- Key features：
• 100% PTFE white resin materials
• Excellent high and low temperature performance:-196°C~260°C
• Excellent chemical resistance • Low shrinkage • Humidity resistance • Ageing resistance • LOI:95%
-
- PTFE Filament Yarn
- Key features：
• 100% PTFE white resin materials
• Excellent high and low temperature performance:-196°C~260°C
• Excellent chemical resistance • High tensile strength • Low shrinkage • Humidity resistance • Ageing resistance • LOI:95%
-
- PTFE Sewing Thread
- Key features：
• 100% PTFE white resin materials
• Excellent high and low temperature performance:-196℃~260℃
• Excellent chemical resistance • High tensile strength • Low shrinkage • Humidity resistance • Ageing resistance • LOI：95%
-
- PTFE Scrim

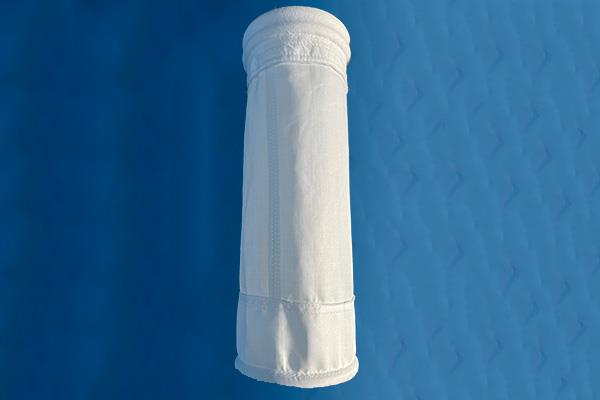

- PTFE scrim is made from our PTFE filament yarn,which can be used as scrim of high temperature needle felt,the dust filter bag will be broken because of weak aging resistance of PPS and glass fiber scrim,PTFE scrim as substitute of traditional scrim has increased the life of the needle when acupunctured with PPS,P84,NOMEX fiber (Specifc can be customized according to customer needs).
